IP68 Flexible Cable Gland Spiral M32x1.5 (Ø15~22mm), Inox Steel 304, 316 or 316L, Sharp Bend Protection, For Extreme Environments

What Is A Stainless Steel Spiral Flexible Cable Gland?

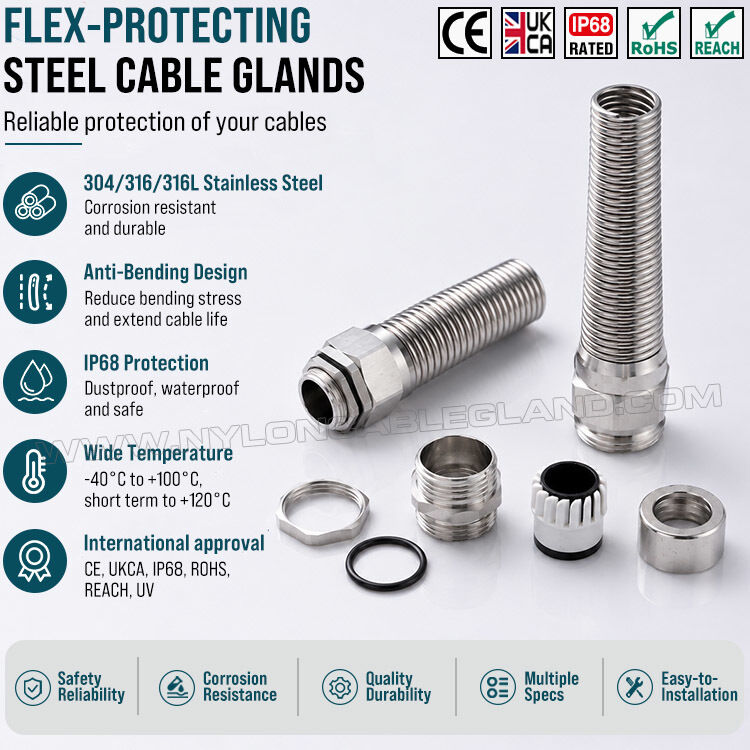

• Locknut: AISI 304, AISI 316, or AISI 316L Stainless Steel
• Sealing ring: NBR, EPDM, Silicone, or FKM/FPM
• Main body: AISI 304, AISI 316, or AISI 316L Stainless Steel
• Clamping insert: UL-Polyamide 6, 94V-2.
• O-ring: NBR, EPDM, Silicone, or FKM/FPM
• Nut with spiral guard: AISI 304, AISI 316, or AISI 316L Stainless Steel

• Secures the cable and prevents it from coming loose
• Provides a waterproof and dustproof seal

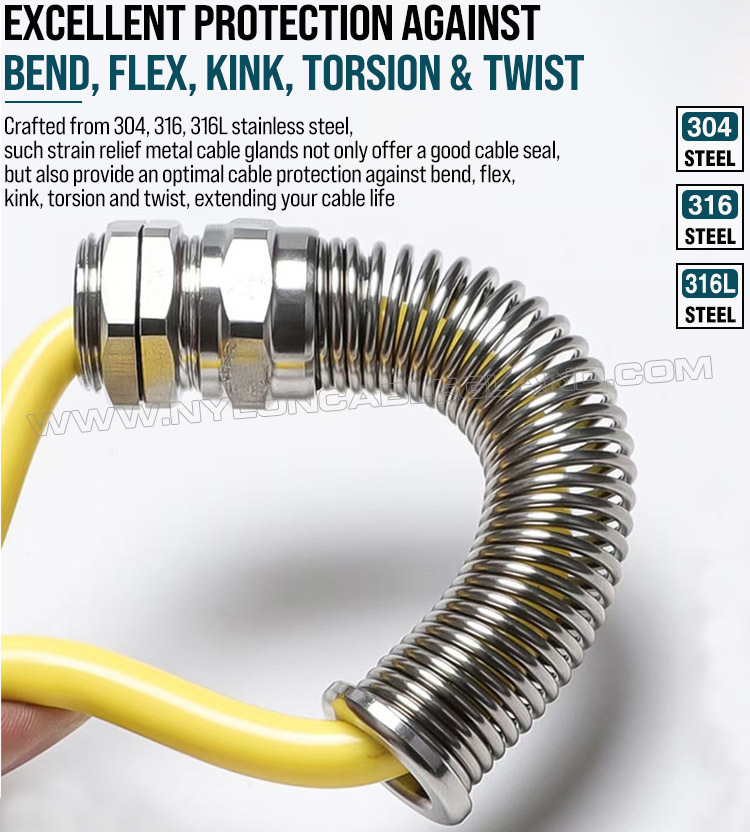

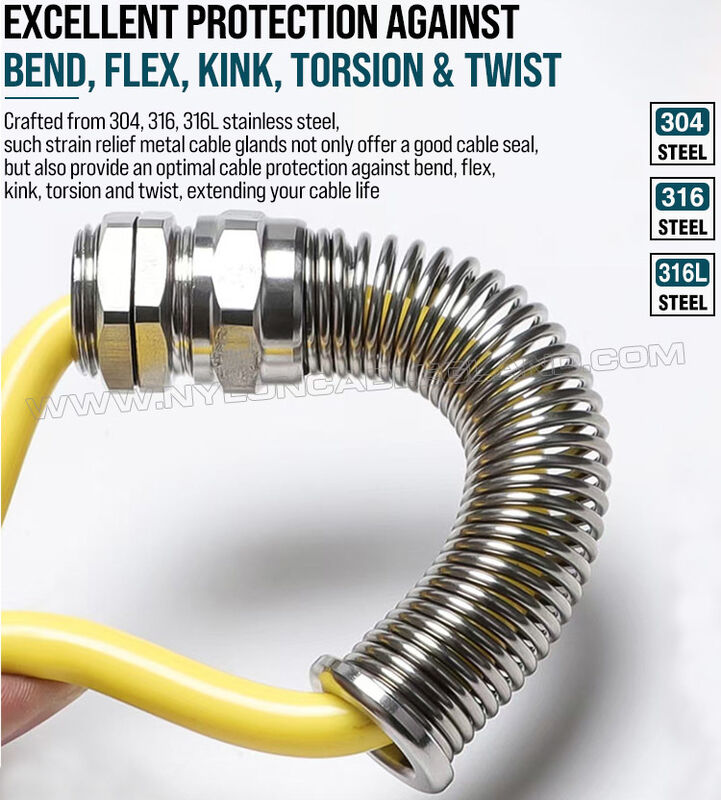

• Reduces cable bending stress
• Prevents internal conductor breakage caused by prolonged, repeated bending
• Extends the cable's service life
• Reduces maintenance costs

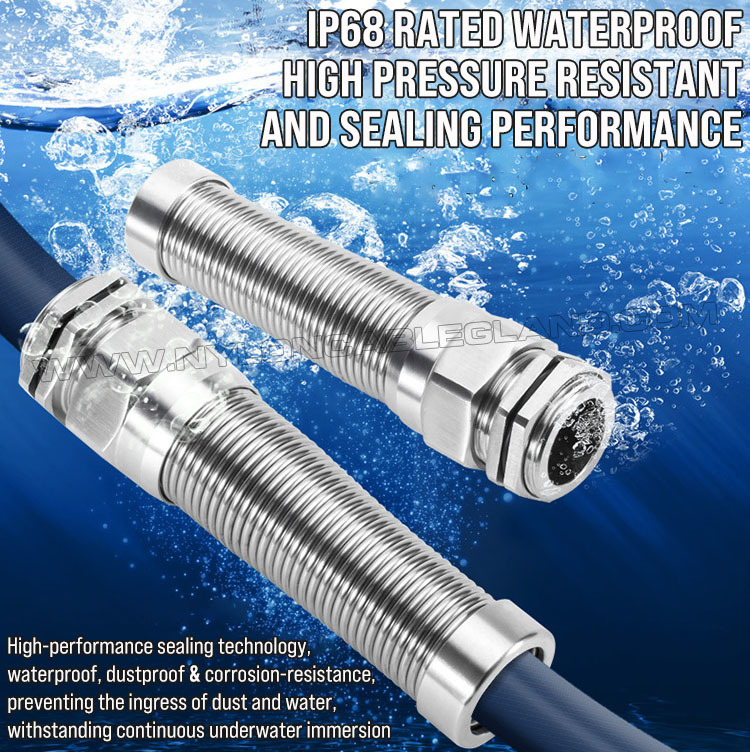

3. High-Level Protection
Typically rated:

• IP68
• IP69K

Suitable for:

• Humid environments
• Underwater equipment
• Outdoor equipment
• High-pressure washdown environments

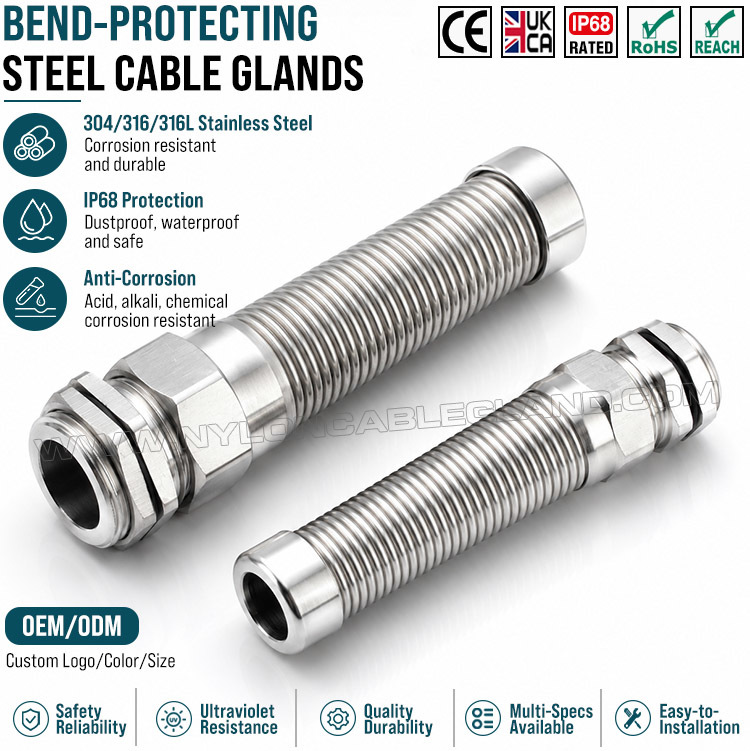

4. Excellent Corrosion Resistance
AISI304 is suitable for:

• Industrial equipment
• Automation equipment
• General outdoor environments

AISI316 is suitable for:

• Marine environments
• Salt spray environments
• The chemical industry

AISI316L is suitable for:

• Food processing equipment
• Pharmaceutical equipment
• Medical equipment
• Petrochemical industry

5. High Vibration Resistance

Particularly suitable for:

• Motor equipment
• Rail transport
• Marine equipment
• Construction machinery

Prevents cable loosening caused by prolonged vibration

6. Application Industries
 (6.1) Industrial Automation

 Applications:

• Industrial robots
• Automated production lines
• Robotic arms

Features:

• Frequent cable movement
• High resistance to bending stress

Summary

A stainless steel spiral flexible cable gland is a premium cable entry solution that combines IP68/IP69K sealing, corrosion resistance, and spiral strain relief protection. The most common materials are AISI 304, AISI 316, and AISI 316L, with AISI 316/316L preferred for marine, chemical, pharmaceutical, and food-processing environments. Available in Metric (M12~M50), PG (PG7~PG42), and NPT thread standards, they are widely used in marine, food, pharmaceutical, automation, chemical, renewable energy, and transportation industries where cable protection and long service life are critical.



Information:

Brand name:	Factory or OEM
Place of origin:	China
Spec.:	M32x1.5 (cable range: 15-22mm)
Material:	Metallic parts are made in stainless steel 304, 316, 316L
	Plastic insert is made from UL-polyamide 6, 94V-2
	Sealing parts are made in NBR, EPDM, Silicone or FKM / FPM
Surface:	Mechanical polishing, mirror polishing or passivation
Color:	Natural
Certification:	CE, UKCA, ROHS, REACH, IP68
Waterproofness:	IP68 (when the cable diameter is within the clamping range and assemble the O-ring)
Thread length:	Standard length
Thread type:	According to EN 60423

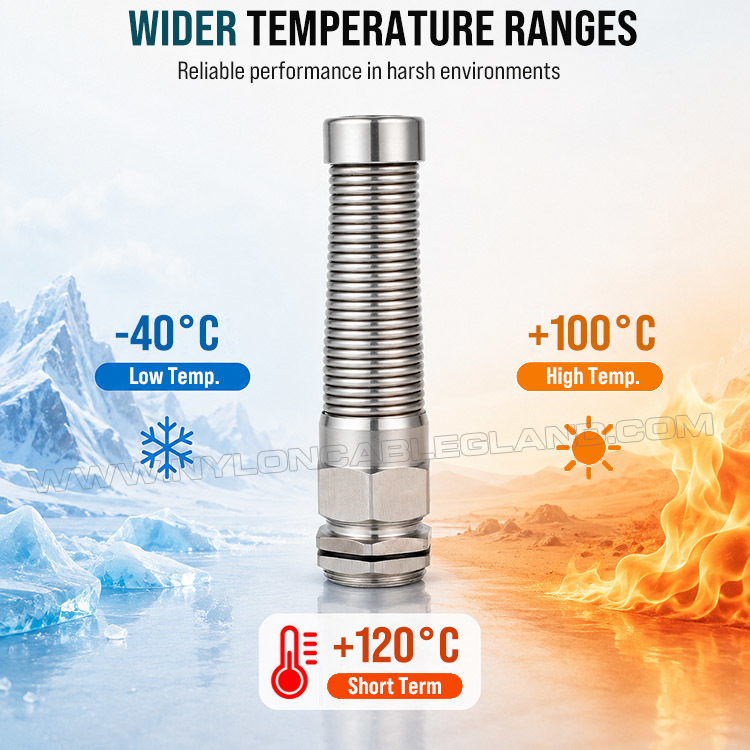

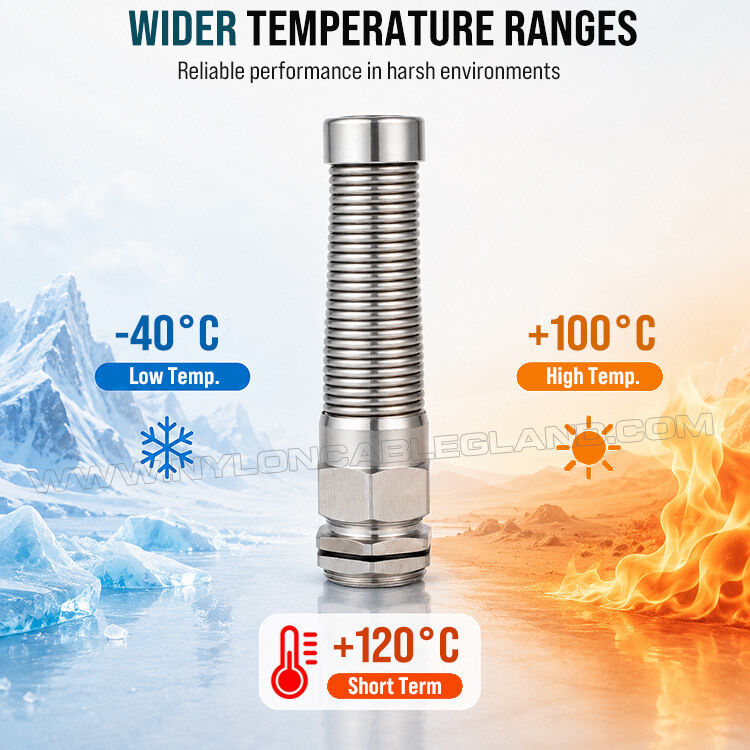

Working temperature:	Static: -40 ℃ to +100 ℃, short-term: +120 ℃. Dynamic: -20 ℃ to +80 ℃, short-term: +100 ℃
OEM service:	Yes, available
Supply capability:	500,000 pieces per month
Minimum quantity:	200 pieces
Sample available:	Free samples are available upon request
Delivery time:	Normally 8-10 days after confirmation of orders
Payment terms:	T/T in advance, Western Union, L/C at sight
Shipment terms:	EMS / TNT / DHL / UPS / FEDEX / By sea / By air or as required
Export packaging:	(1) 100 pieces per bag or 50 pieces per bag (2) special packaging can be customized as requested
